Ross OGP - Model Dump

The Ross OGP core has the ability to capture all device parameter information and save it. This information can be used to help Skaarhoj add new models to the system.

This guide will show how to create a model dump.

1. Connect to device

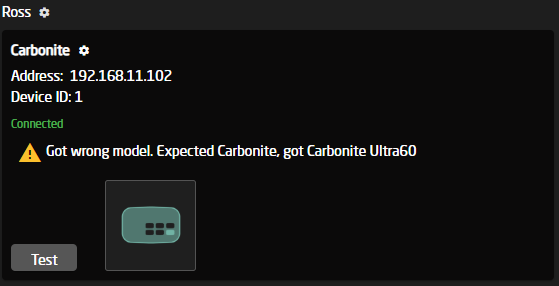

Connect to the device using a random model. Make sure the device states connected.

2. Set description prefix

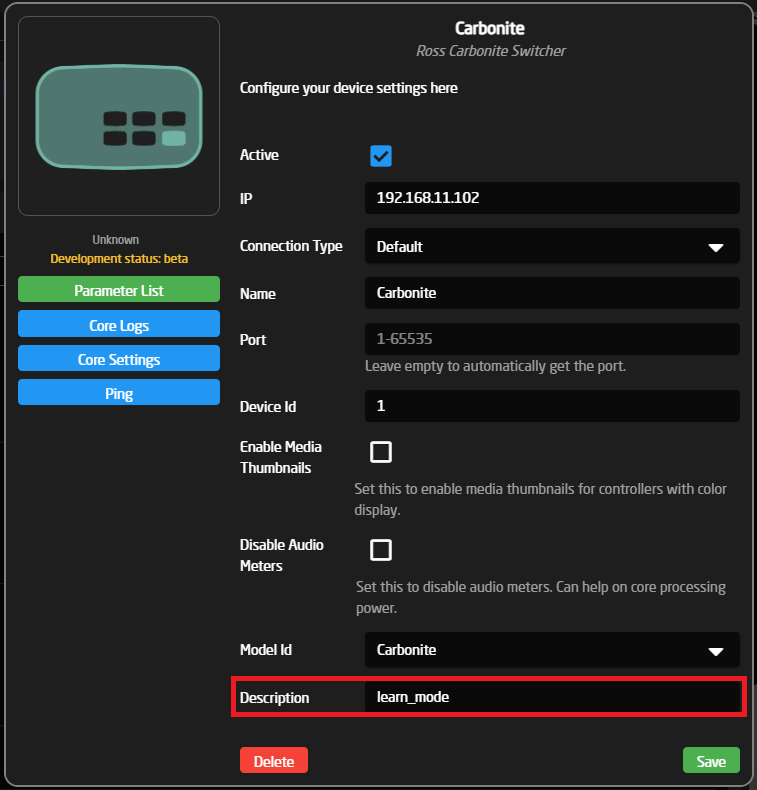

Open the device configuration again and add 'learn_mode' to the start of the description. Press save.

3. Open logs

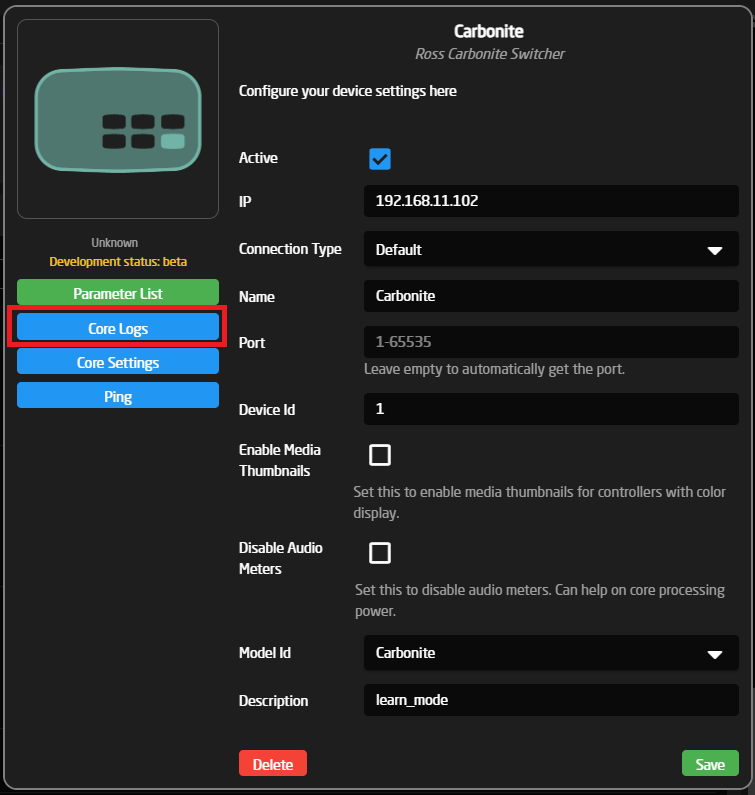

Open the device configuration again, and press the 'Core Logs' button.'

4. Download and send package

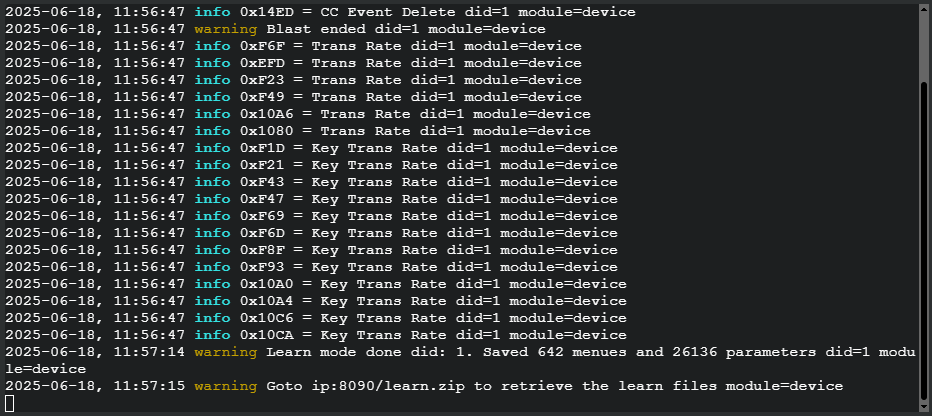

After about 30 seconds, you should see something like this in the core logs. If not, please reload the page.

The last log line here shows where to get the file from. For example, if your Skaarhoj panel is on '192.168.3.16', go to '192.168.3.16:8090/learn.zip'. This should begin a download of a zip file. Send this file to support@skaarhoj.com along with as much as possible information regarding the device you are connected too.
