AJA FrameSync Video Channels

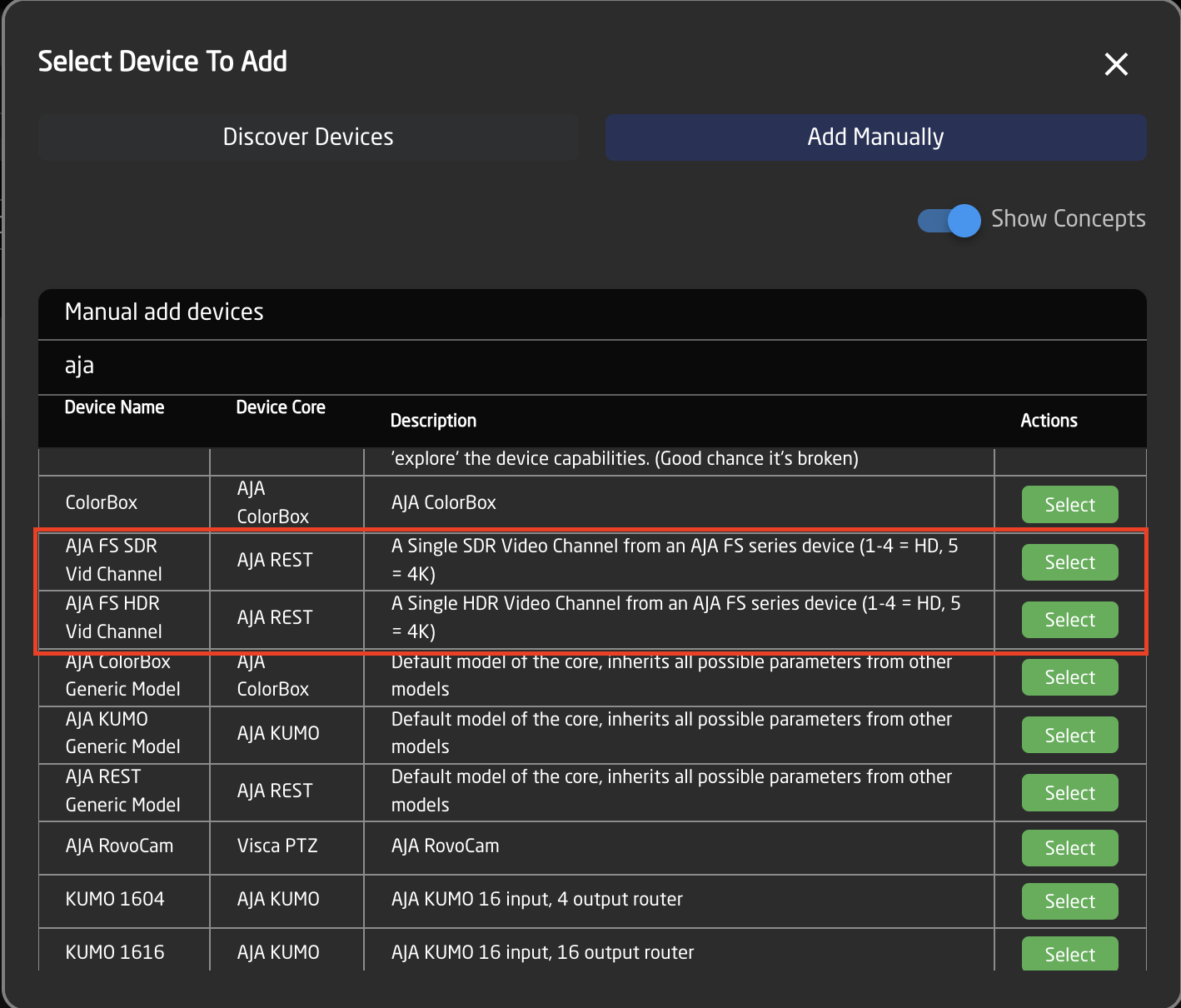

When controlling individual video channels of an AJA FS series frame sync, it is important to add the video channel as an individual device. Selecting AJA FS SDR or AJA FS HDR Vid Channel depending on your FS model.

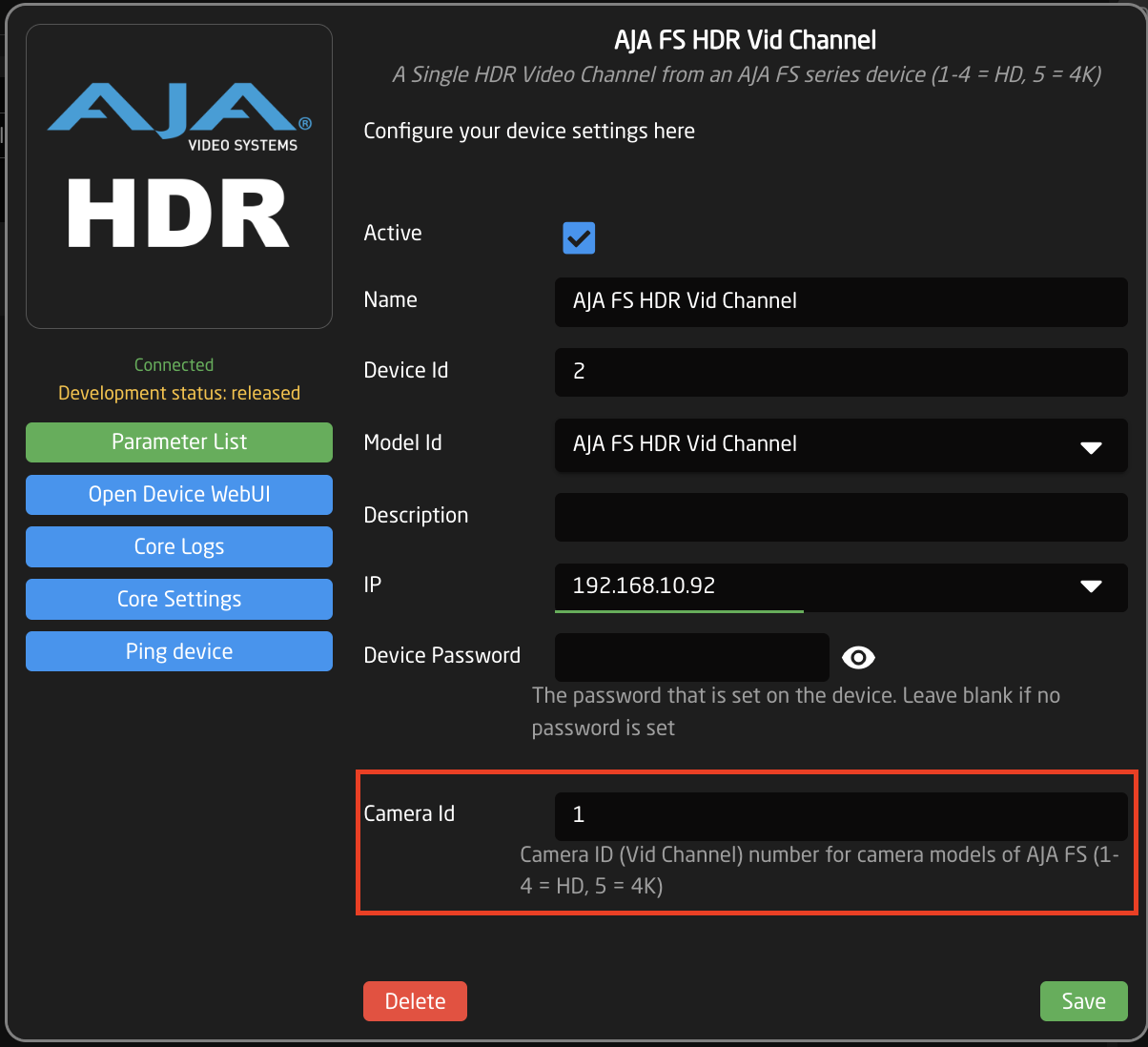

After adding the Vid Channel as a device, input the IP address for the FrameSync and specify which channel is being controlled in the Camera ID field.

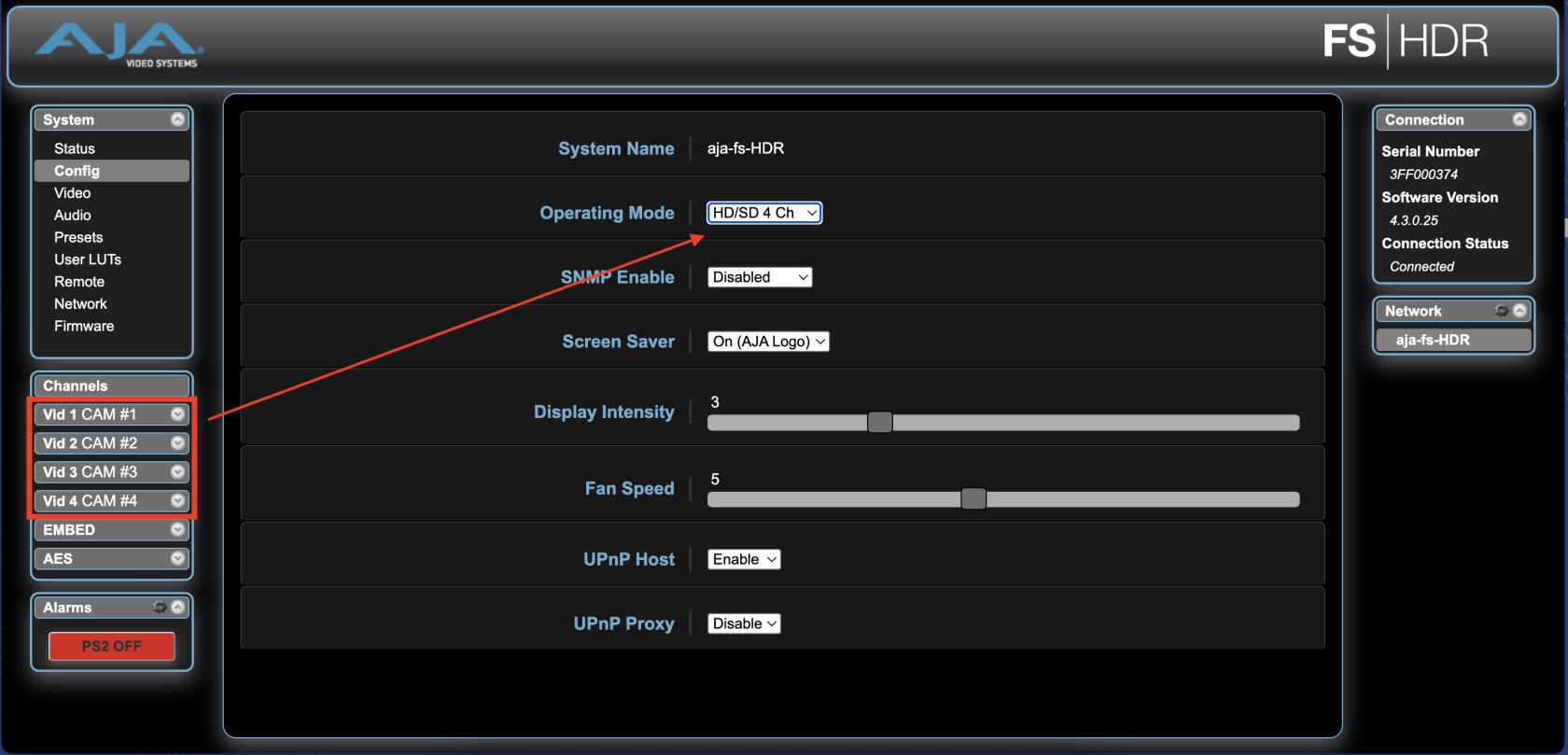

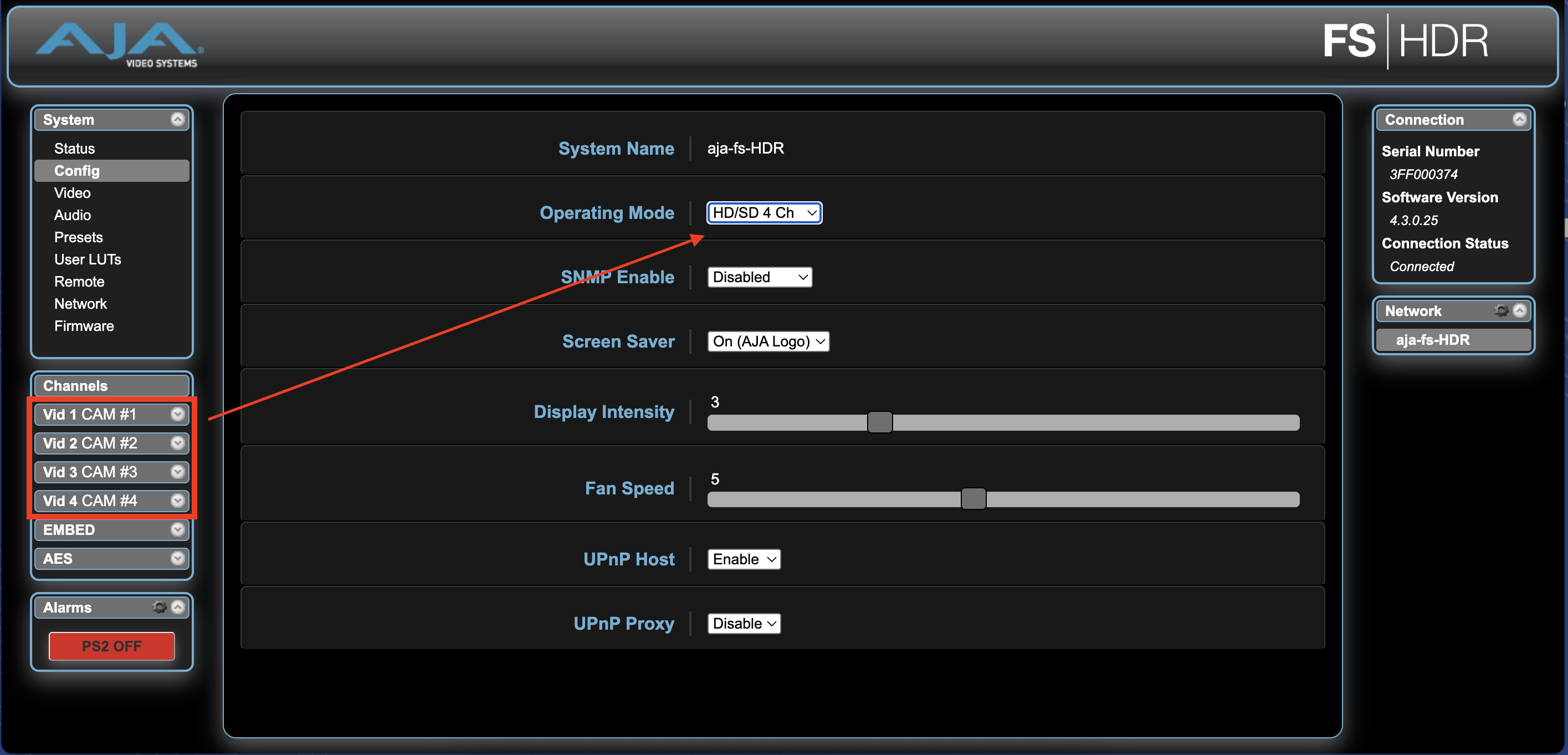

IDs 1-4 correspond to Vid Channels 1-4 when when in HD/SD mode as defined in the Operating Mode within the FS web interface.

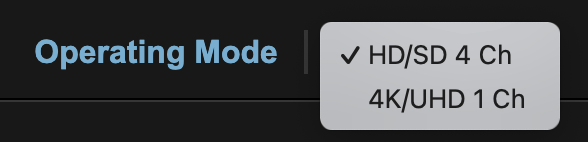

ID 5 corresponds to the single 4k channel when Operating Mode is set to 4k/UHD within the AJA Frame Sync web interface.
