Switcher Inputs

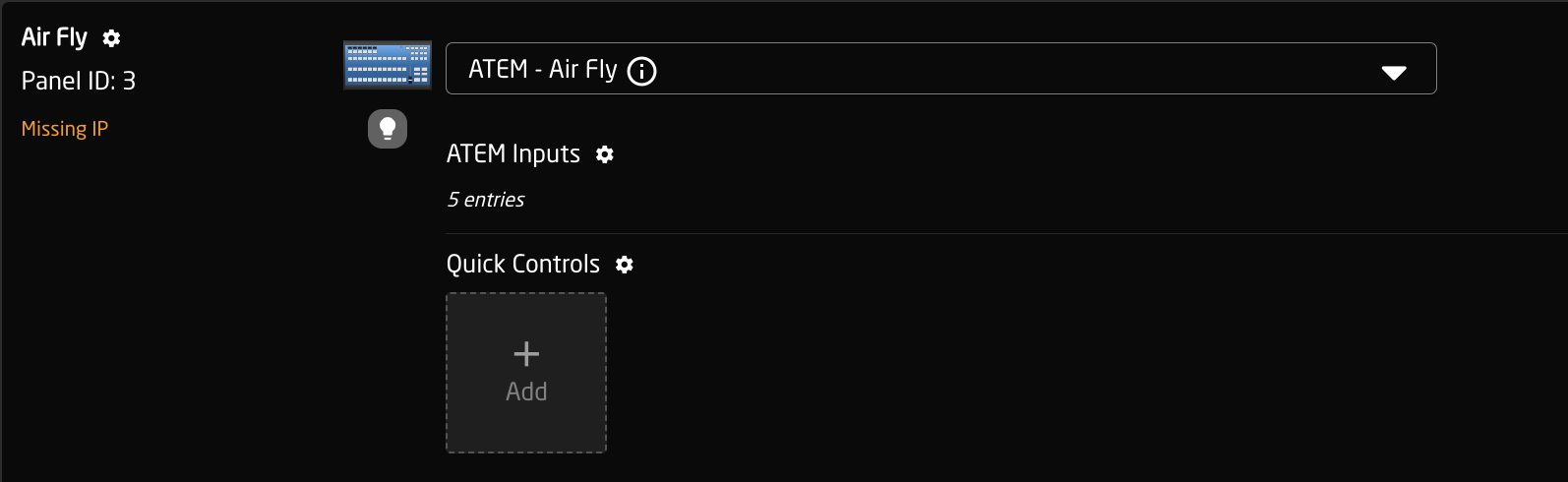

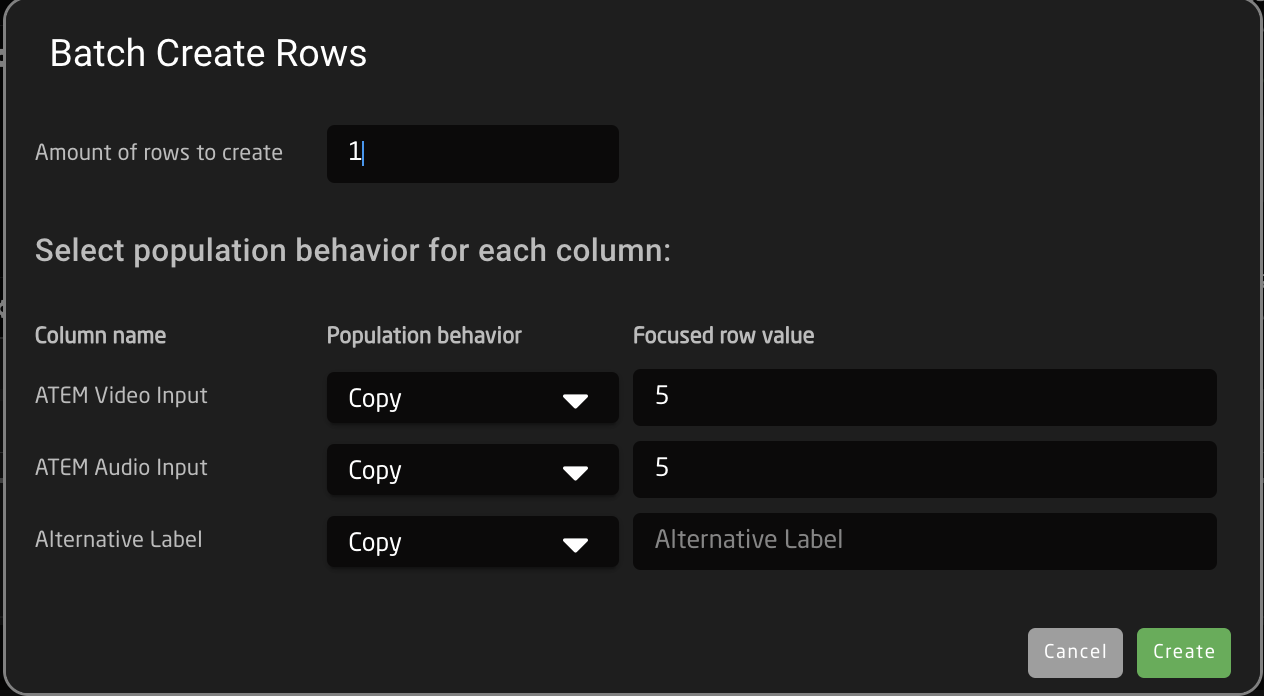

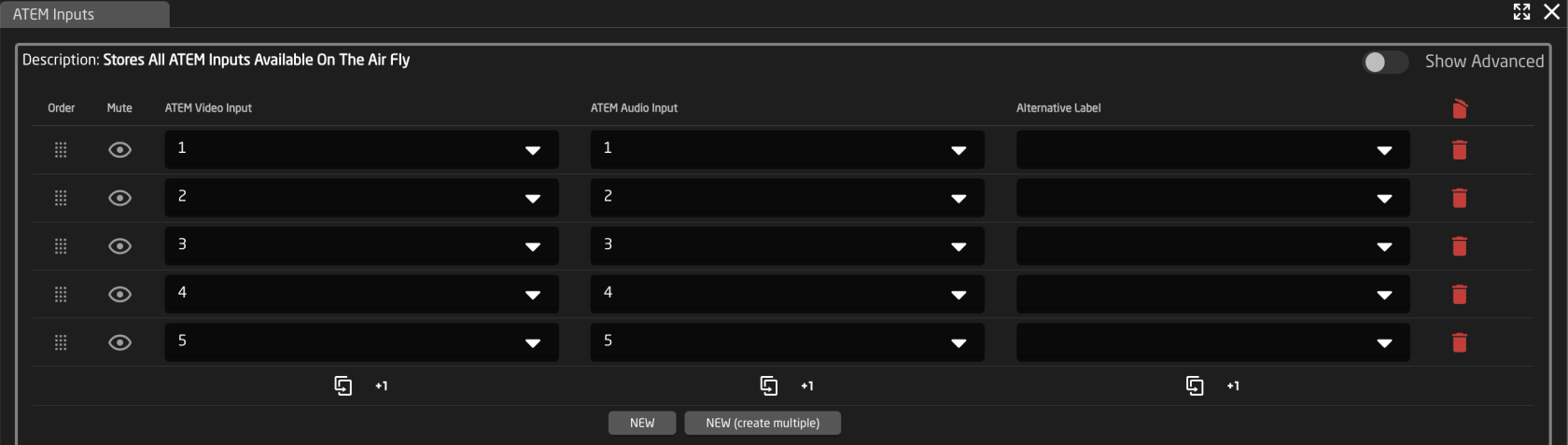

An example of a switcher inputs selector can be seen below. These can be different depending on the selected configuration and device. From here the order of inputs for video and audio will be set as well as the desired name on the displays and button color.
|
Column |
Description |
|
Order |
Allows for quick rearranging of channel order. Right clicking on order will allow for deleting the row. |
|
Mute |
Allows for removing access to a specific channel or to leave a blank spot on the panel |
|
Video Input |
Sets video input order on the panel. |
|
Audio Input |
Sets audio input order on the panel. |
|
Alternate Label |
Customizable name to appear on the displays. Character limit is determined by size of display and can vary. |
