Routing Panels

An example of a router panel set up can be seen below. These can be different depending on the selected configuration and device.

Screenshot 2025-06-25 at 13.12.02.png

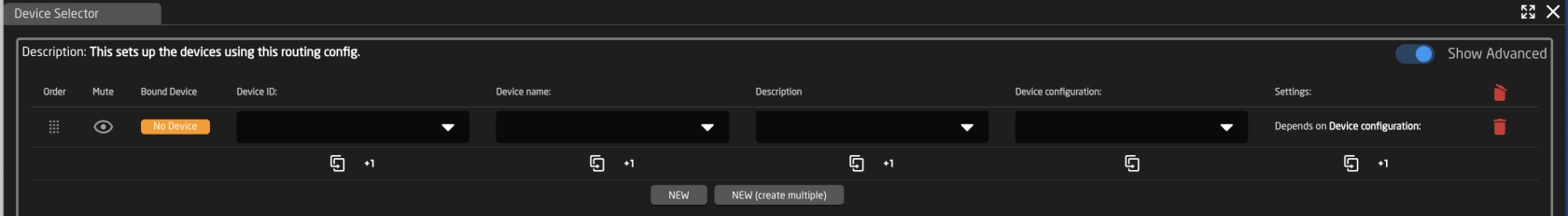

Device Selector

Screenshot 2025-06-25 at 12.52.13.png

Column

Description

Order

Allows for quick rearranging of router order. Right clicking on order will allow for deleting the row.

Mute

Allows for removing access to a specific router or to leave a blank spot on the panel

Bound Device

Allows for the selecting of a specific connected routing device.

Device Index

Ties the selector to a specific device associated with the config. See Device Details for the device index number.

Device Name

Customizable name to appear on the displays. Character limit is determined by size of display and can vary.

Description

Customizable description. Character limit is determined by size of display and can vary.

Device Configuration

Selects the protocol based configuration associated with the router. Needed protocol can be seen in the Devices section, each device is grouped into their native protocols.

Setting

Setup some extra configurable attributes on some specific device configs. For routers this is usual Input and Output mapping.  See Settings section below.

Screenshot 2025-06-25 at 14.13.03.png

Delete the row.

Screenshot 2025-06-25 at 11.13.05.png

Duplicates the details of the column.

Screenshot 2025-06-25 at 11.13.16.png

 Increments the number in the column by +1.

Screenshot 2025-06-25 at 11.16.30.png

Adds a new line to create additional routing select.

Screenshot 2025-06-25 at 11.16.40.png

Opens a table to create multiple new routing selects. See Batch Create section below.

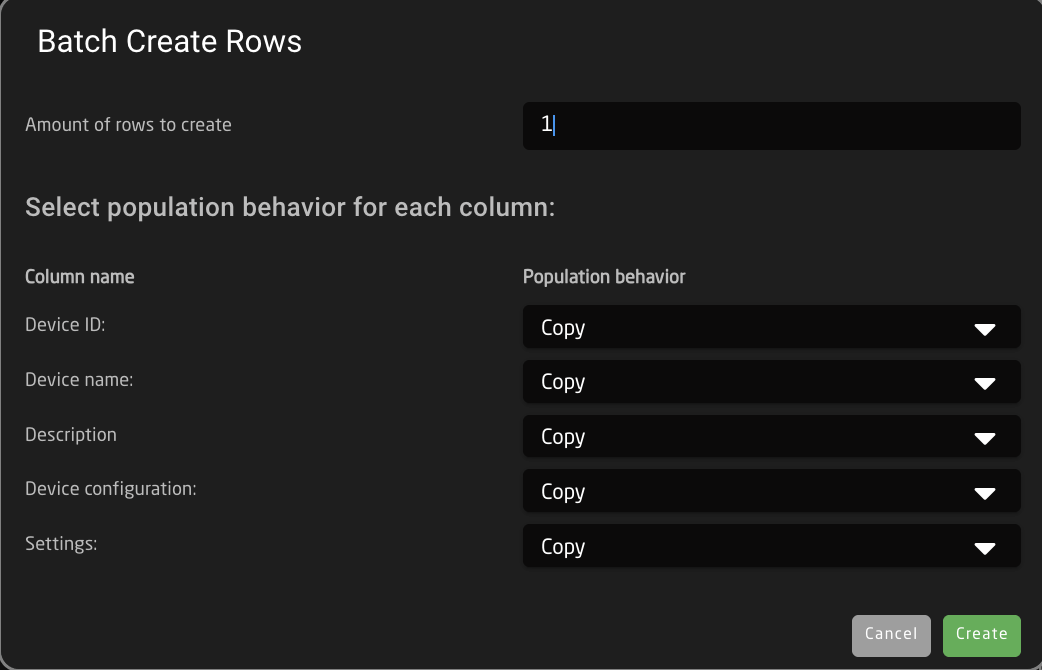

Batch Create

Screenshot 2025-06-25 at 14.33.47.png

Amount of Rows to Create The number of additional rows to be created.
Column Name Which settings table row's info being referenced.
Populate Behavior Select if the settings table row is to be empty, copied, or incremented by 1.

Screenshot 2025-06-25 at 11.24.21.png

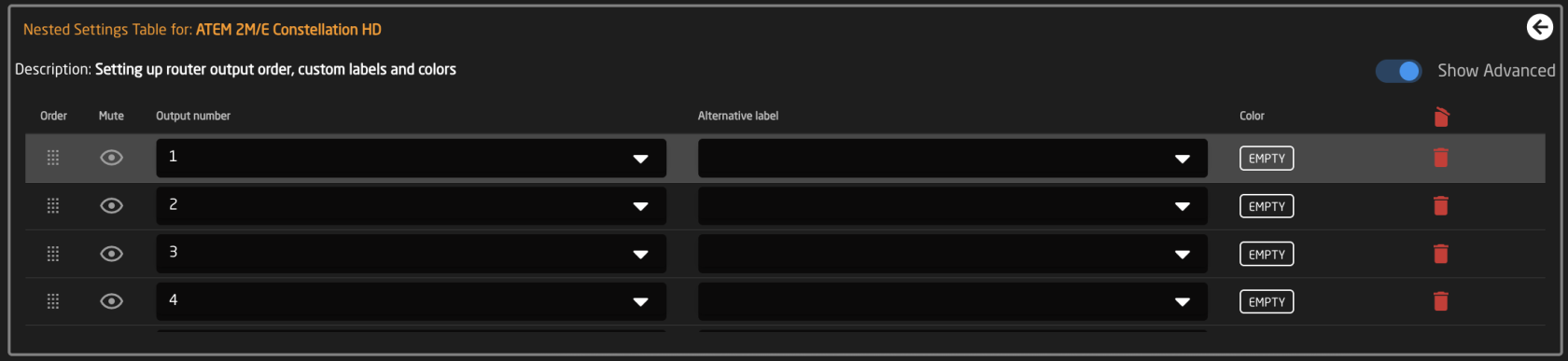

Settings

Screenshot 2025-06-25 at 14.48.32.png

Column

Description

Order Allows for quick rearranging of input/output order. Right clicking on drag will allow for deleting the row.
Mute Allows for removing access to a specific input/output or to leave a blank spot on the panel
Output Number/Input Number Ties the selector to the specific input/output. This is found is determined by the individual router.
Alternative Label Customizable name to appear on the displays. Character limit is determined by size of display and can vary.
Color Sets the button feedback color. Color options are: OFF, WHITE, WARM, RED, ROSE, PINK, PURPLE, AMBER, YELLOW, DARKBLUE, BLUE, ICE, CYAN, SPRING, GREEN, MINT.
The format for color selection is all large letters with no spaces between words.
Screenshot 2025-06-25 at 14.13.03.png Delete the row.

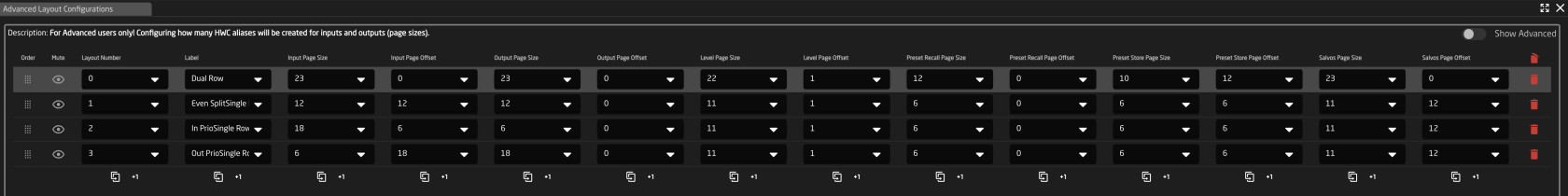

Advanced Layout Configurations

The layout of the routing configurations are able to be change within the configuration. Within the Advanced Layout Configurations settings table, it is possible to set up page sizes and offsets for each of the configurations as well as set up a prefered order of the layouts. Not all columns are used for each device configuration.

Screenshot 2025-06-26 at 10.06.22 AM.png

Order

Allows for quick rearranging of layout order. Right clicking on drag will allow for deleting the row.

Mute

Allows for removing access to a specific layout or to leave a blank spot on the panel

Layout Number

Out internal reference number for the layout

Label

Text in displays of panel

Input Page Size

Input Page Size

Input Page Offset

Input Page Offset

Output Page Size

Output Page Size

Output Page Offset

Output Page Offset

Level Page Size

Level Page Size

Level Page Offset

Level Page Offset

Preset Recall Page Size

Preset Recall Page Size

Preset Recall Page Offset

Preset Recall Page Offset

Preset Store Page Size

Preset Store Page Size

Preset Store Offset

Preset Store Offset

Salvos Page Size

Salvos Page Size

Salvos Page Offset

Salvos Page Offset

Screenshot 2025-06-25 at 14.13.03.png

Delete the row.

Screenshot 2025-06-25 at 11.13.05.png

Duplicates the details of the column.

Screenshot 2025-06-25 at 11.13.16.png

 Increments the number in the column by +1.
