Audio Channel Config

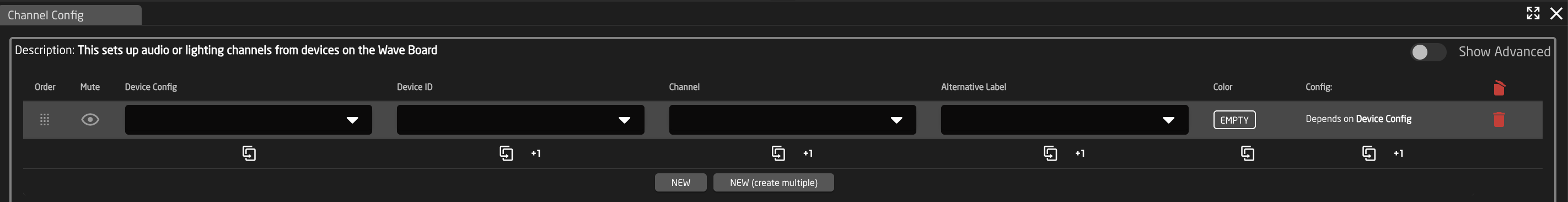

An example of an audio channel config can be seen below. These can be different depending on the selected configuration and device. From here the order on the audio channel order will be set as well as the desired name on the displays and button color.
|
Column |
Description |
|
Order |
Allows for quick rearranging of channel order. Right clicking on order will allow for deleting the row. |
|
Mute |
Allows for removing access to a specific channel or to leave a blank spot on the panel |
|
Device Config |
Ties the fader to a specific device config. |
|
Device Index |
Ties the fader to a specific device associated with the config. See Device Details for the device index number. |
|
Channel |
Ties the fader to a specific channel in the selected device. See device parameter list for available channel number for the specific device. |
|
Alternate Label |
Customizable name to appear on the displays. Character limit is determined by size of display and can vary. |
|
Color |
Sets the button feedback color. Color options are: OFF, WHITE, WARM, RED, ROSE, PINK, PURPLE, AMBER, YELLOW, DARKBLUE, BLUE, ICE, CYAN, SPRING, GREEN, MINT. |
|
Config |
Setup some extra configurable attributes on some specific device configs. |
|
|
Delete the row. |
|
|
Duplicates the details of the column. |
|
|
Increments the number in the column by +1. |
|
|
Adds a new line to create additional fader channels. |
|
|
Opens a table to create multiple new fader channels. See Batch Create section. |

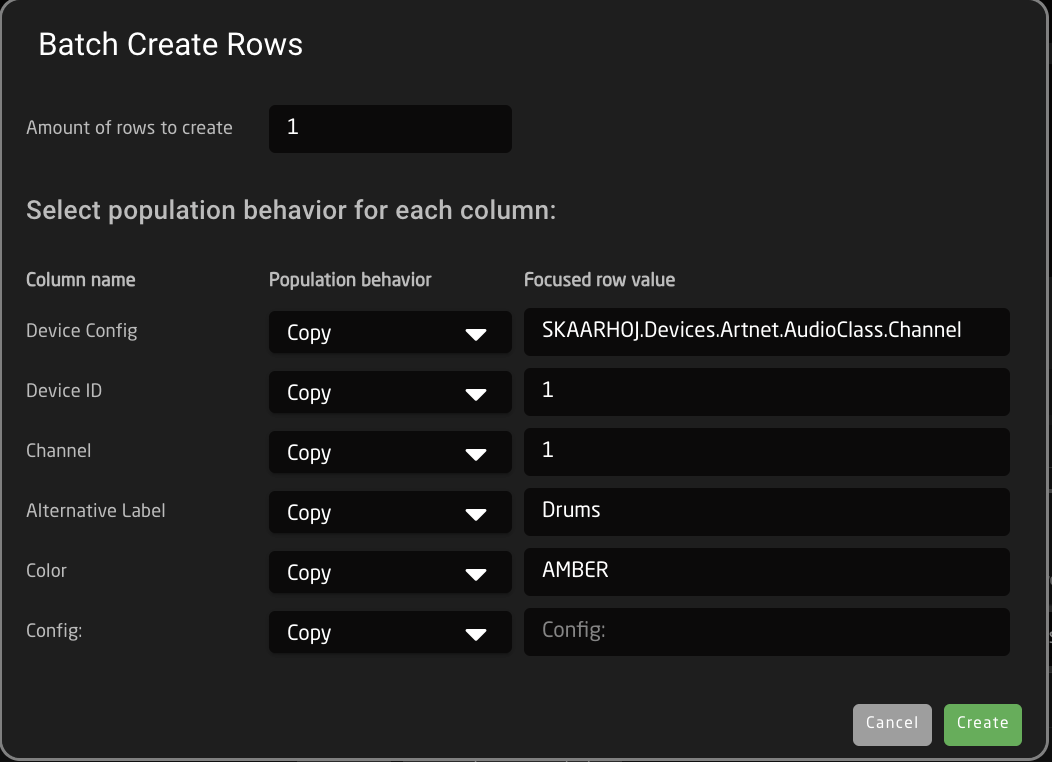

Batch Create
| Amount of Rows to Create | The number of additional rows to be created. |
| Column Name | Which settings table row's info being referenced. |
| Populate Behavior | Select if the settings table row is to be empty, copied, or incremented by 1.
|
| Focus Row Value | Current value of the settings table row to be left empty, copied, or incremented in the new rows. |
